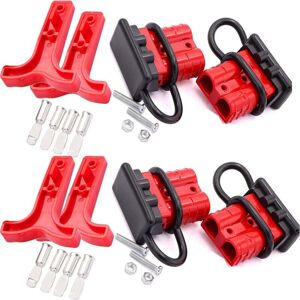

50A 600V SH50 Power Connector Power Bank Plug Color Contacts 2-Pole Simplified assembly and minimized component count Low resistance connection Contacts feature a sacrificial tip that allows high current circuit interruption Keyed and color-coded housings Prevents accidental cross-mating of circuits Self-securing Stainless steel springs create a stop force between the contacts that holds the connector in the mated position For signal transmission or added security from premature grounding The shell is made of polycarbonate, resistant to high temperature corrosion; metallic with notches to prevent the terminals from moving, to ensure contact Rated current (Amps) 50A Rated voltage (Voltage) 600V Contact body size (AWG) 6/10/12AWG (13.3 mm⊃2; - 5.3/3.3 mm⊃2;) Average contact resistance 0.05Mohm Test voltage 2200V Insulation resistance 500Mohm Avg. Disconnect Force 53N Enclosure Material Flammability Rating UL94 V- 0 Operating Temperature Range -20° to 125° Specification: 50A 600V Color:
