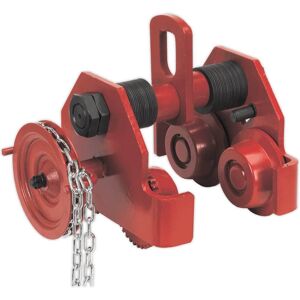

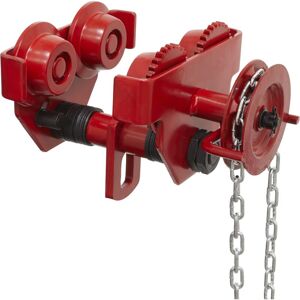

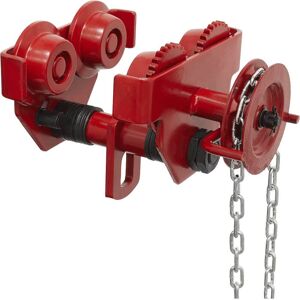

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer. Features & Benefits: • Suitable for use with our lever hoists or chain blocks. • Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. • Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. • Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer. • Model No. PT3000G Specifications: Model No PT3000G Brand: Sealey Nett Weight: 41kg Capacity: 3000kg Test Load: 4500kg Track Width Adjustable Range: 76-203mm Minimum Curve Radius: 1500mm A: 344mm B: 250mm C: 180mm D: 150mm E: 200mm Weight: 41kg Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm Maximum Distance Between Spans: 2700mm Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm Maximum Distance Between Spans: 4500mm Refer to catalogue for diagram:
